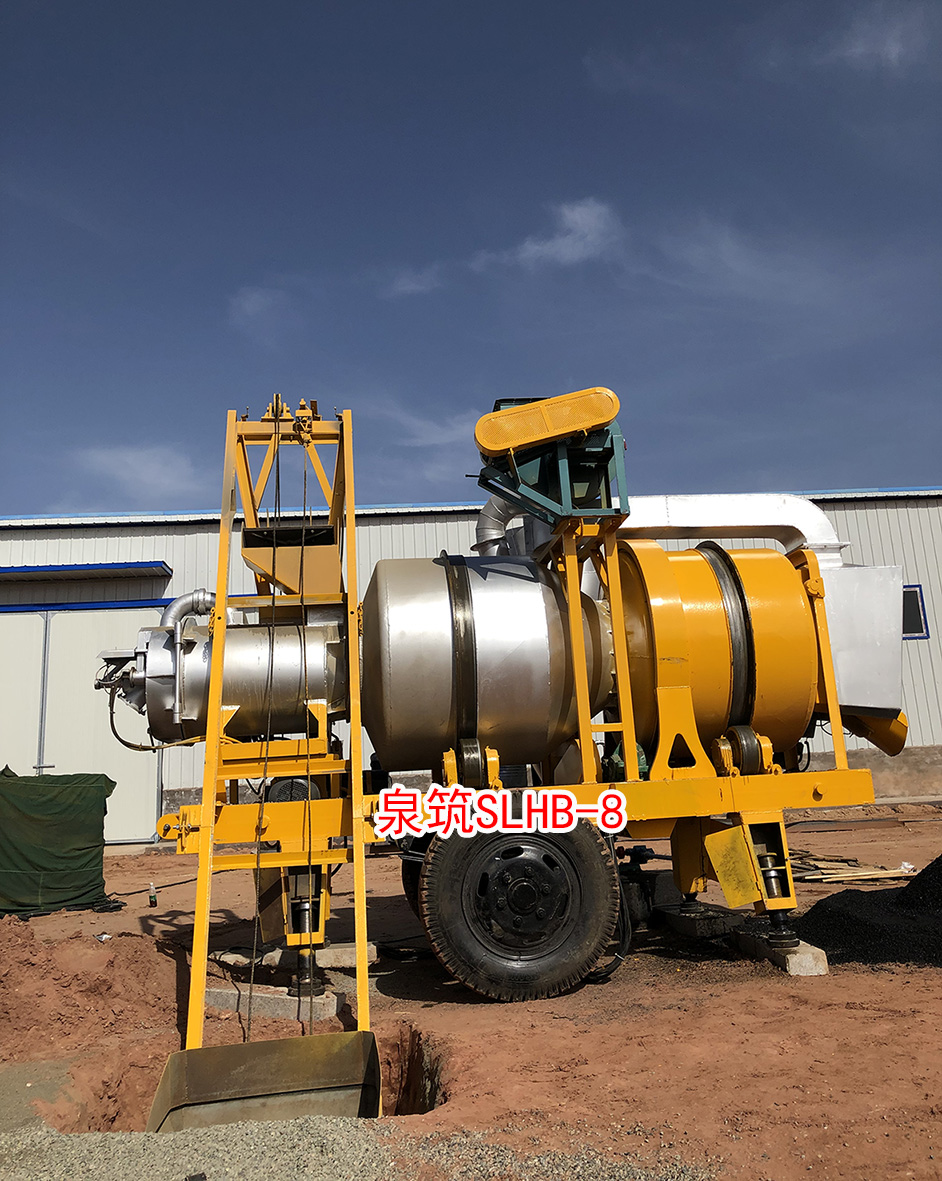

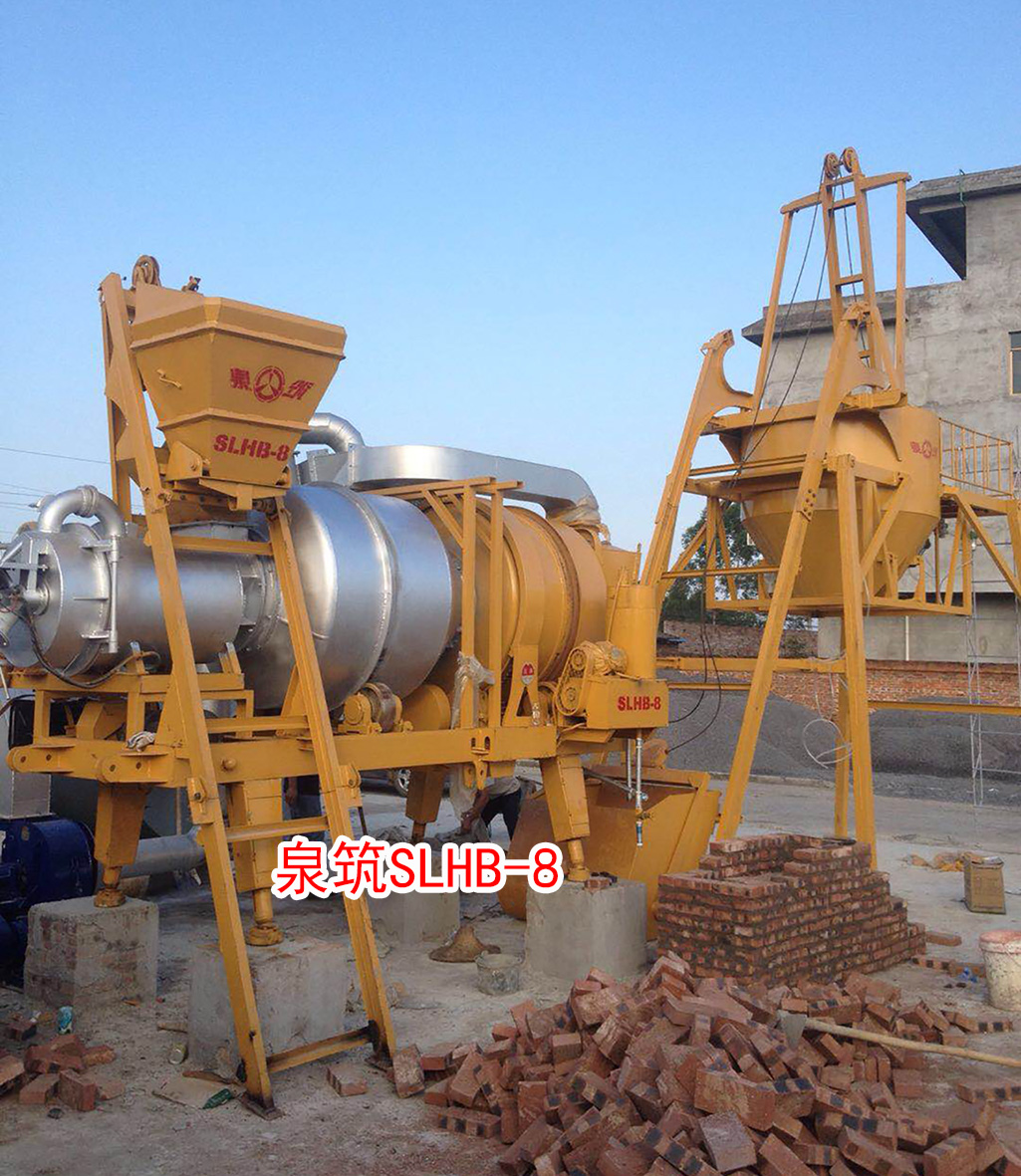

SLHB-8型雙滾筒移動間歇式瀝青混合料拌和機

　　我廠的SLHB-8型雙滾筒移動間歇式瀝青混合料拌和機，采用烘干滾筒、拌和滾筒連為整體的拖掛結構形式，整機占地面積小，移場就位安裝周期短，燃料適用范圍廣，具有操作簡單，維護方便，性能穩定可靠，成品料品質優秀，自動化、標準化程度高等特點，可滿足各種地理條件的高等級瀝青路面的養護施工作業，尤其適合中小型道班作為養護施工作業的配套設備。

　　本機型備有燃油型SLHB(Y)-8及燃煤、燃油兩用型SLHB(M)-8兩種型號可供用戶選擇。

　　SLHB-8型拌和機具體性能特點如下：

　　1、主機可整體拖掛移動，移場、拆裝就位周期短，操作簡單，維護方便。

　　2、采用液壓支撐腳，安裝調整省力、省時，穩定可靠。

　　3、除塵系統采用雙管式旋風除塵器，除塵效果較好。

　　4、烘干滾筒采用厚16Mn鋼制作，大梁采用18號重型槽鋼整體框架式焊合結構。

　　5、熱瀝青計量輸送裝置采用瀝青泵輸送、液位繼電器計量，油石比準確。

　　6、控制系統集成化、自動化程度高，主控制器和顯示器采用日本歐姆龍PLC可編程控制器、可編程顯示終端，可實現系統的自動及手動集中控制。

　　7、電器控制柜關鍵元器件，均采用國際名牌元件，包括：

　　按鈕、接觸器、電機啟動器、塑殼開關、接線端子：西門子；

　　PLC可編程控制器、可編程顯示器、時間繼電器：西門子。

    8、燃燒爐總成可燃煤、燃油兩用，采用電子自動點火裝置，適用燃料范圍包括煤粉或柴油、重油、渣油等可燃油，如選用磨煤送粉裝置，還可以實現從小煤塊破碎、磨粉、吹送到自動點火、充分燃燒、自動排渣的全工作過程，更可直接調整供煤量，以調節火焰大小，方便調整成品料出料溫度，適應不同施工條件要求。新型燃燒爐總成技術含量高，燃料消耗量低，經濟效果顯著，特別適合各種地理條件用戶的使用要求。系列產品所有規格型號的燃燒爐，爐膛內均采用高性能指標的成型耐火磚砌制，一般工人按照隨機安裝圖即可輕易完成爐磚的筑砌更換，極大地方便于工地生產。

　　9、本設備有效地克服了國內直筒連續式攪拌設備的固有缺陷，如：

　　⑴瀝青容易老化；

　　⑵礦料及瀝青連續計量精度難以保證；

　　⑶成品料溫度不夠穩定等。

    10、主要技術性能參數

    ⑴額定生產率：     8t/h

    ⑵進料容積：        0.25立方米

　　⑶進料重量：        0.4噸/斗

　　⑷出料溫度：        120-165℃可調

　　⑸適用范圍：        瀝青混合料

　　⑹燃料消耗：        柴油：5.5～8kg/t混合料；煤粉：12～15kg/t混合料

　　⑺烘干滾筒轉速：    18轉/分

　　⑻配套總功率：      SLHB(Y)-8：27.8kw  SLHB(M)-8：43.35kw

    其中：

    滾筒驅動功率：      5.5KW

    鼓風機功率：        2.2KW

    通風除塵功率：      4KW

    骨料提升功率：      3KW

    瀝青泵功率：        2.2KW×2（輪番間歇工作）

    柴油泵功率：        0.55KW+1.1KW

    加熱板：            0.5KW×4+1.5KW×3

    電動推桿：          0.55KW

    磨煤送粉裝置：      15.55KW（燃煤粉選用）

    控制驅動方式：      PLC可編程集中電氣控制

    主機外形尺寸（長×寬×高）：4155×2250×3550(mm)

SLHB-8 type double drum mobile intermittent asphalt mixture mixing machine
Our factory's SLHB-8 type double-drum mobile intermittent asphalt mixture mixing machine adopts a trailer structure where the drying drum and the mixing drum are integrated as a whole. The overall machine occupies a small area, and the installation period for moving and positioning is short. The fuel application range is wide. It features simple operation, convenient maintenance, stable and reliable performance, excellent quality of finished materials, high degree of automation and standardization, etc. It can meet the maintenance and construction operations of various high-grade asphalt pavement under various geographical conditions. It is especially suitable for medium and small-sized road maintenance teams as a supporting equipment for maintenance and construction operations.
This model is equipped with two types of engines for users to choose from: the fuel-type SLHB(Y)-8 and the dual-fuel type SLHB(M)-8.
The specific performance features of the SLHB-8 mixer are as follows:
1.The main unit can be moved by towing as a whole. The relocation, disassembly and reinstallation process is short, the operation is simple and the maintenance is convenient.
2. Adopting hydraulic support feet, the installation and adjustment are effortless and time-saving, and the stability is reliable.
3. The dust removal system adopts a double-tube type cyclone dust collector, which has a good dust removal effect.
4. The drying drum is made of 16Mn steel with a thickness of 16mm, and the main beam is constructed by welding together 18# heavy-duty channel steel into an integral frame structure.
5. The hot asphalt metering and conveying device adopts the method of conveying through asphalt pumps and metering by liquid level relays, ensuring accurate asphalt-to-gravel ratio.
6. The control system is highly integrated and automated. The main controller and display adopt the programmable controller and display terminal of Omron PLC from Japan, enabling automatic and manual centralized control of the system.
7. For the key components of the electrical control cabinet, internationally renowned brand components are adopted, including:
Buttons, contactors, motor starters, molded-case switches, terminal blocks: Siemens;
PLC programmable controller, programmable display, time relay: Siemens.
8. The combustion furnace assembly can be used for both coal and fuel oil combustion. It adopts an electronic automatic ignition device. The applicable fuel range includes pulverized coal or diesel, heavy oil, residual oil, etc., which are combustible fuels. If a coal grinding and powder supply device is selected, it can also realize the entire working process from crushing small coal lumps, grinding, blowing to automatic ignition, complete combustion, and automatic slag discharge. Moreover, the supply of coal can be directly adjusted to regulate the flame size, and the output temperature of the finished product can be conveniently adjusted to meet the requirements of different construction conditions. The new combustion furnace assembly has high technical content, low fuel consumption, and remarkable economic effects. It is particularly suitable for the usage requirements of users in various geographical conditions. All specifications and models of the combustion furnaces in this series use high-performance indicators of formed refractory bricks to build the furnace chamber. Ordinary workers can easily complete the installation and replacement of furnace bricks according to the random installation diagram, greatly facilitating on-site production.
9. This equipment effectively overcomes the inherent defects of domestic straight-tube continuous mixing equipment, such as:
⑴ Asphalt is prone to aging.
(2) The continuous measurement accuracy of the aggregates and asphalt is difficult to guarantee.
(3) The temperature of the finished material is not stable enough, etc.
10. Main Technical Performance Parameters
⑴Rated production rate: 8 tons per hour
⑵ Feed tank volume: 0.25 cubic meters
⑶ Feed weight:0.4 tons per bucket
⑷ Discharge temperature: Adjustable within the range of 120 - 165℃
(5) Scope of application: Asphalt mixture
(6) Fuel consumption: Diesel: 5.5 - 8 kg/t of mixed material; Coal powder: 12 - 15 kg/t of mixed material
⑺ Drying drum rotation speed: 18 revolutions per minute
⑻ Total power of the set: SLHB(Y)-8: 27.8 kwSLHB(M)-8: 43.35 kw
Among them:
Drum drive power: 5.5KW
Blower power: 2.2KW
Ventilation and dust removal power: 4KW
Gravel lifting power: 3KW
Power of asphalt pump: 2.2KW × 2 (alternating intermittent operation)
Diesel pump power: 0.55KW + 1.1KW
Heating plate:4 pieces of 0.5KW each + 3 pieces of 1.5KW each
Electric push rod:0.55KW
Coal grinding and powder feeding device: 15.55KW (for coal powder selection)
Control drive mode: PLC programmable centralized electrical control
The dimensions of the mainframe (length × width × height): 4155 × 2250 × 3550 (mm)
